Gears

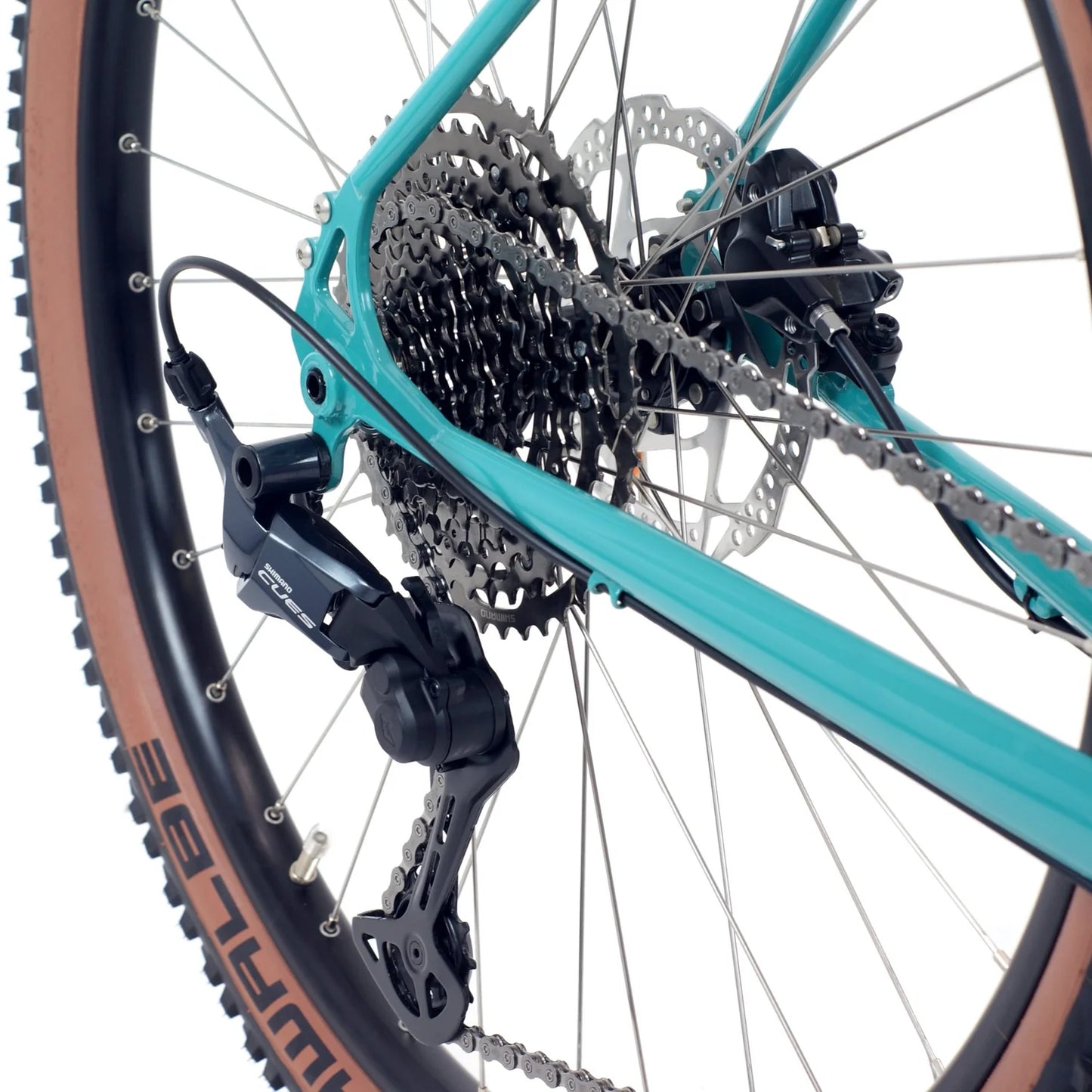

Shimano Cues 11 speed derailleur. 11-43T cassette
Frame
Specially selected combination of Reynolds butted steel tubes (725, 631, & 525). Additive manufactured (3D printed) seatstay junction.
Straight 44mm ID headtube. Unique Pashley Thru Axle dropouts (12x142mm) dropouts. Propstand plate. X 2 Bottle cage mounts
Fork
Full Carbon Fork, Tapered Steerer 1,1/2, 1,1/8. 12x100 Thru Axle. Pashley Porteur rack compatible
Saddle

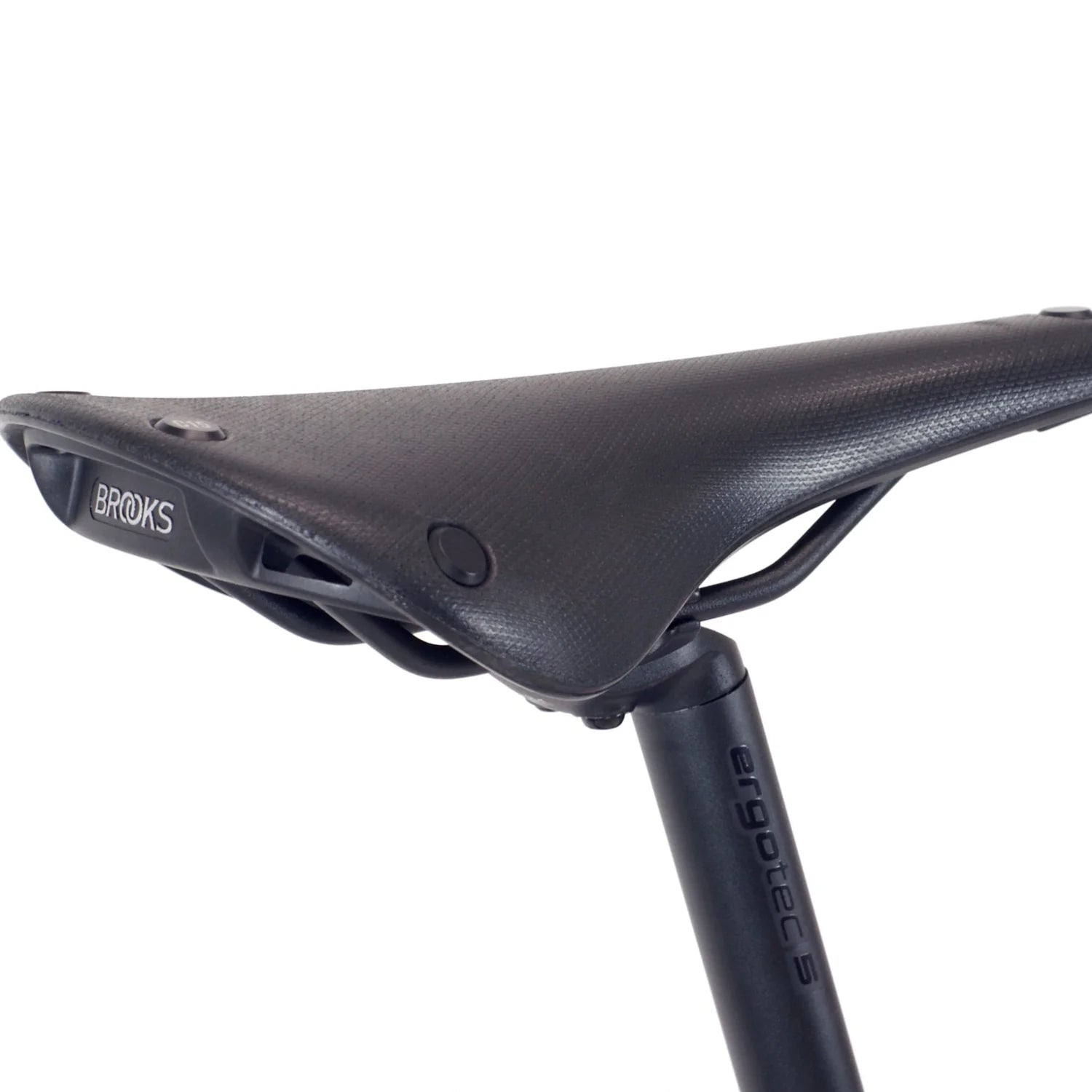

Brooks Cambium C15 Black
Handlebar

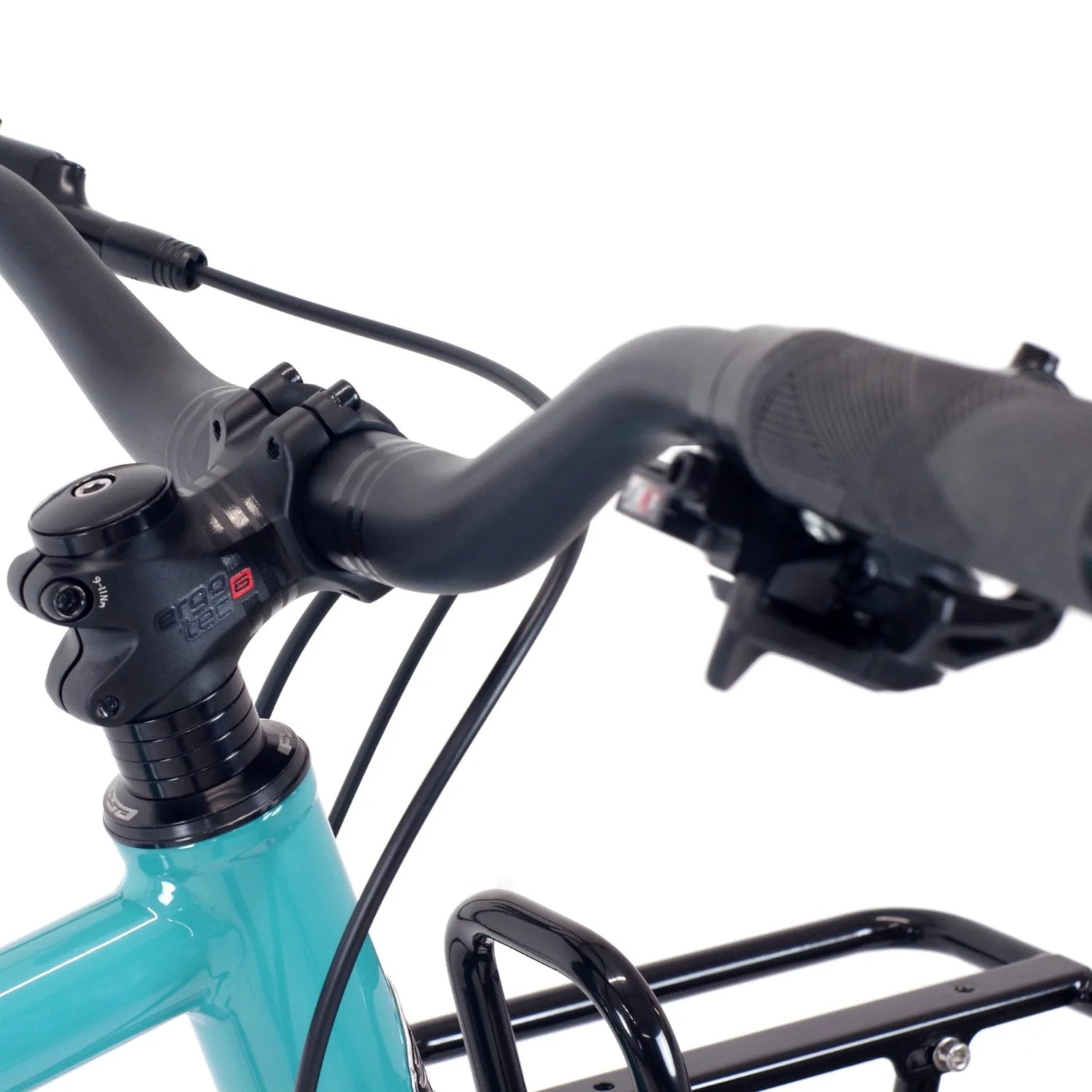

Black beadblasted Aluminium MTB style Handlebar. 31.8 diameter clamp. 30mm rise, 16 degree backsweep, 720mm width.
Black beadblast Aluminium stem (50mm) and seatpost (27.2)
Brakes
Shimano MT201 Hydraulic Disc Brakes. 160mm rotors
Wheels
27.5" Aluminium Rim (23mm internal width, Tubeless ready) laced to Shimano RS470 hubs using Sapim double butted stainless spokes (28H)
Tyres
Schwalbe Smart Sam 27.5 X 2.1" MTB style. Tan sidewalls
Pedals
Black platform pedals with grip tape
Crankset

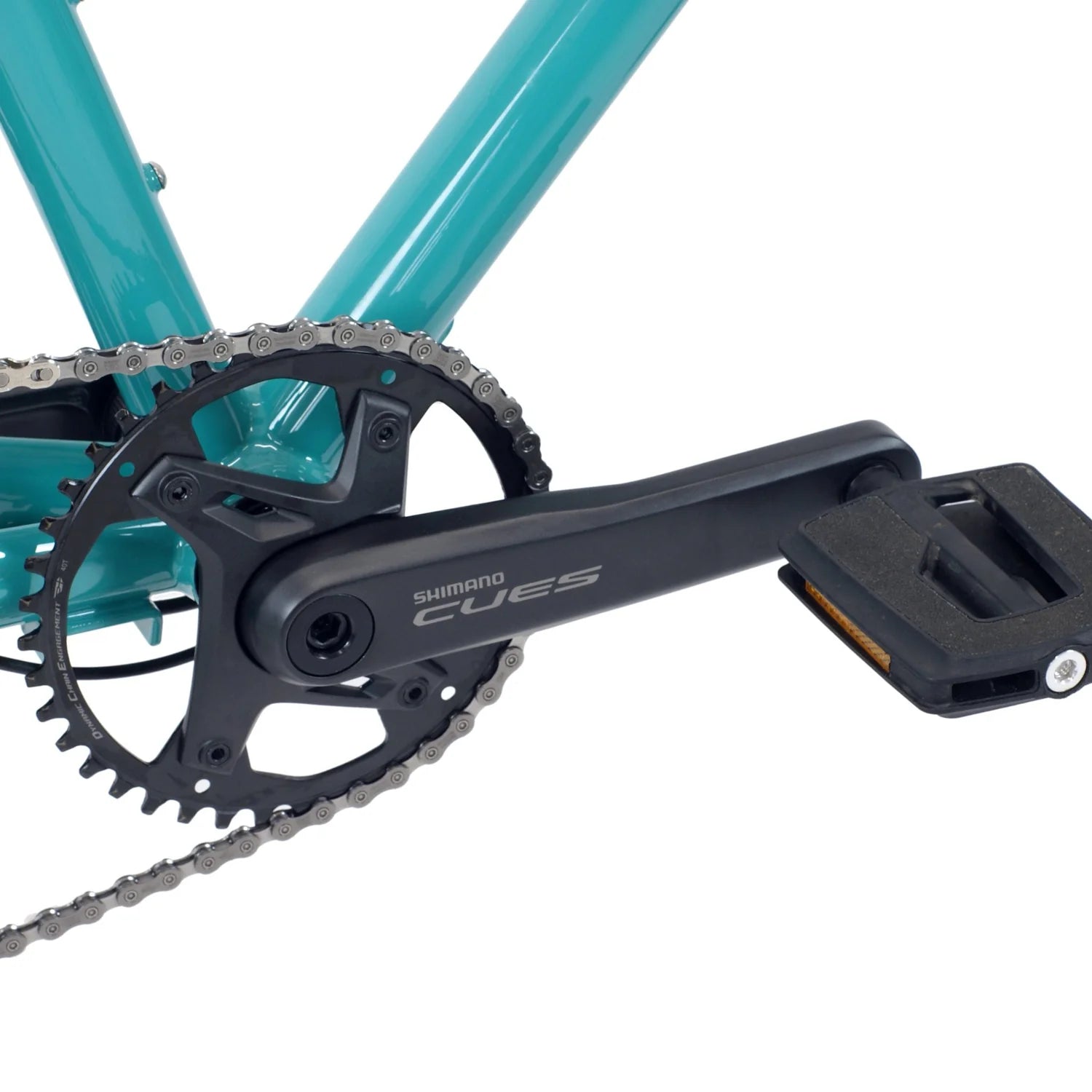

Shimano Cues U6000 Crankset 40T with Narrow / Wide tooth profile for chain retention.
Stand
Compatible with a centrally mounted ‘flip-down’ sprung propstand. (available separately)
Bell
Handlebar mounted - ping bell.
Grips
Black lock-on grips.
Front Carrier

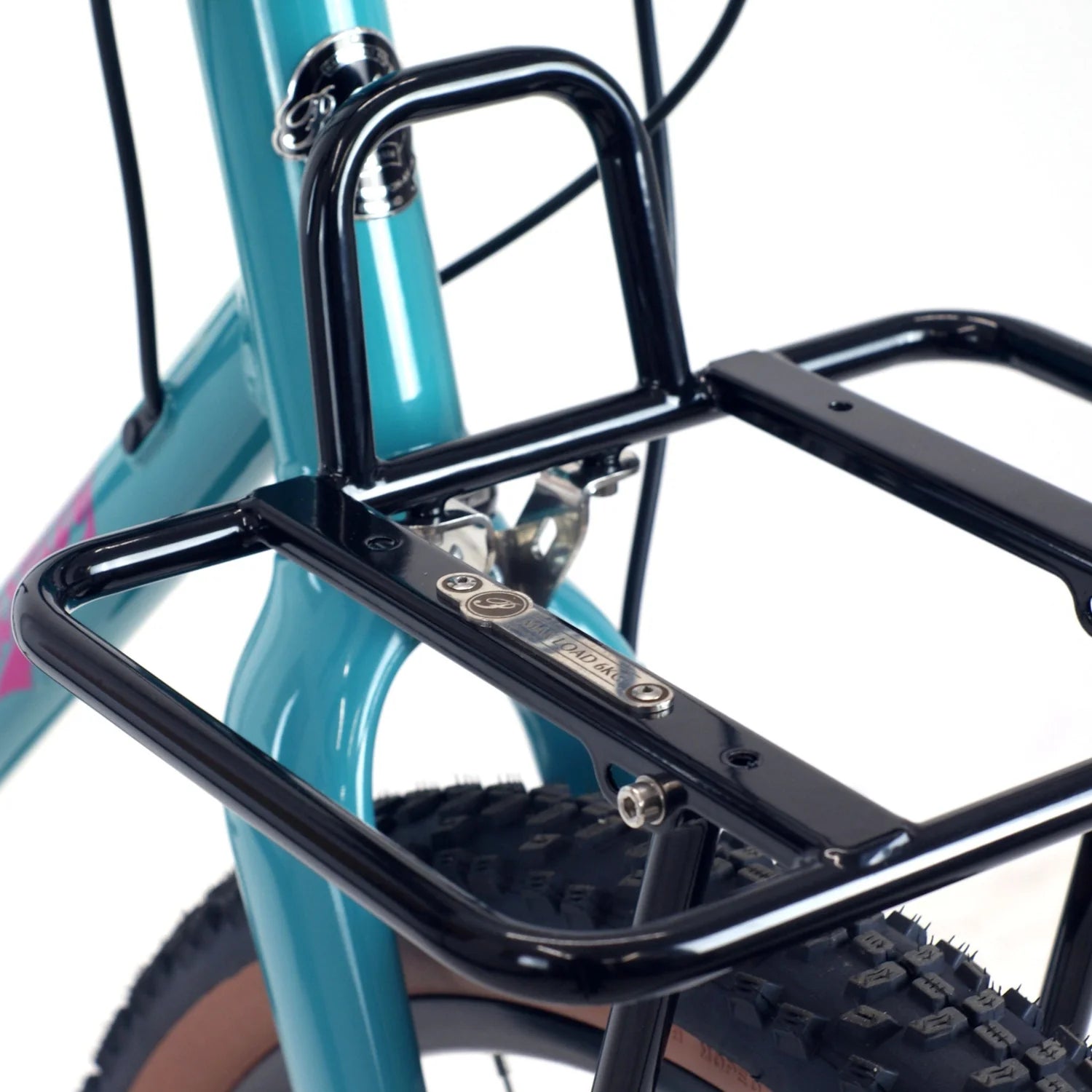

Front Porteur carrier fitted as standard. 6kg load capacity.
